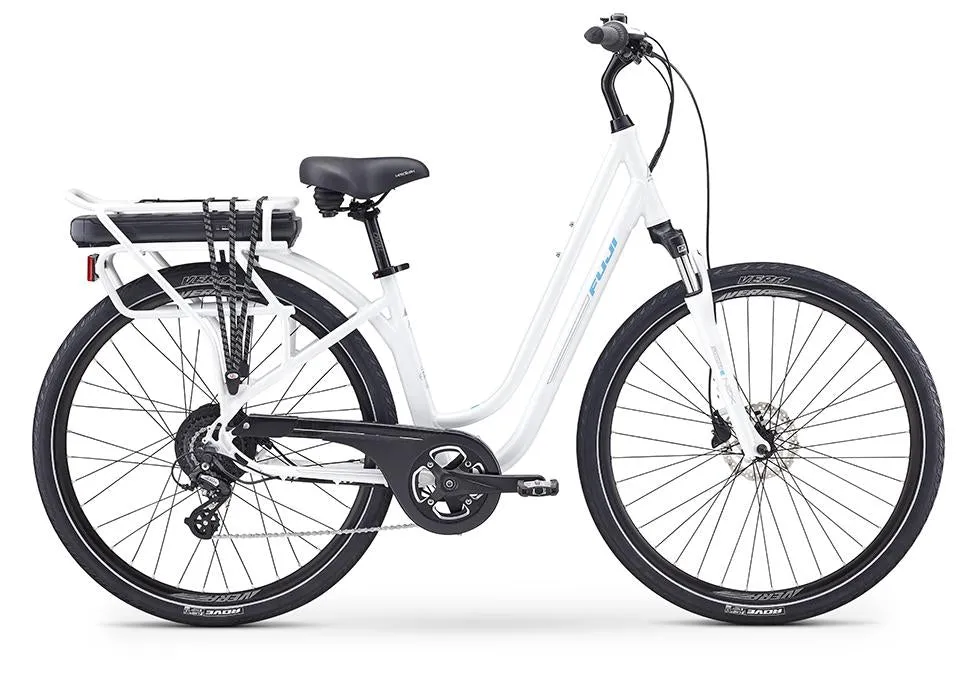

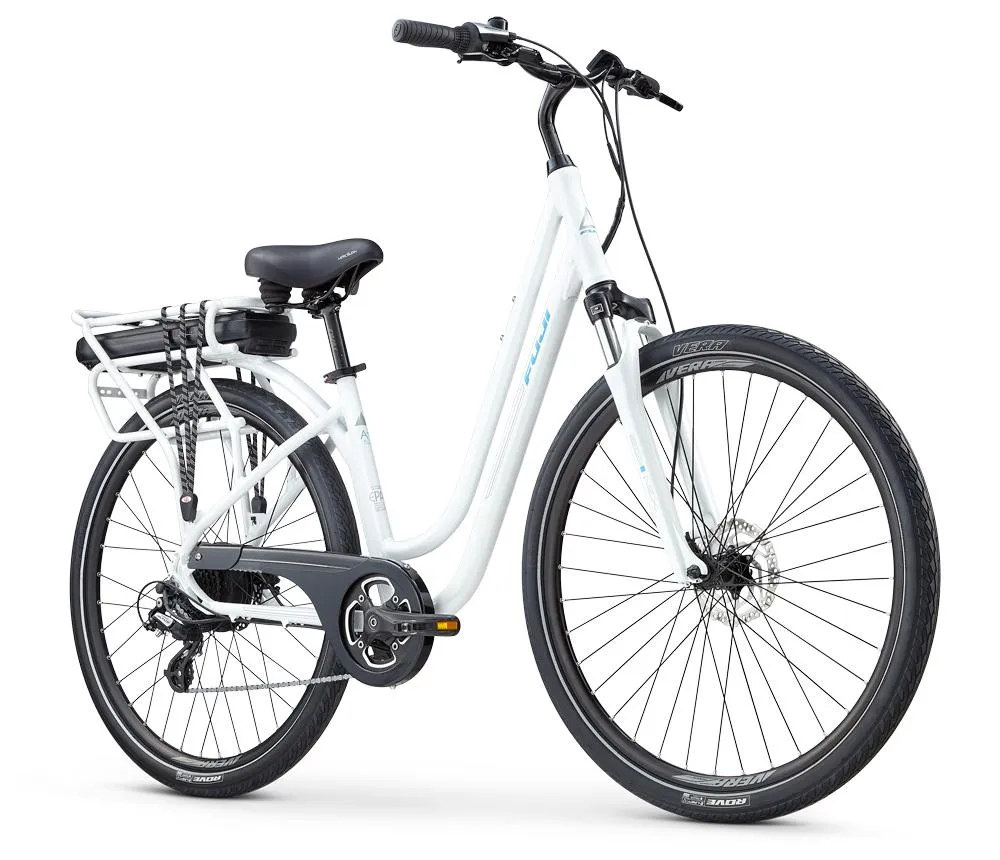

Riders who prefer a comfortable, upright position and who want the assist of an electric motor have found their sweet spot in the E-Crosstown. With a rear hub motor that can scoot you along at up to 20mph, plus a walk assist mode, the E-Crosstown is perfect for your relaxed outings.
| Frame: | Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts |
|---|---|
| Fork: | Suntour NEX disc, 700C coil, travel 63mm, steel steerer |
| Crank: | Fuji 44T chainring, w/ chainring guard |
| Shifters: | Shimano Tourney RS45 Revoshifter |
| Headset: | 1 1/8" threaded steel |
| Wheelset: | Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets |
| Seatpost: | Alloy micro-adjust, 27.2mm diameter |
| Grips: | Oval Concepts Comfort Single LO, single density Kraton |
| Stem: | Classic alloy quill stem |
|---|---|
| Handlebars: | Alloy 25mm rise, 9° sweep, 25.4mm clamp |
| Saddle: | Selle Royal Metropolitan with Comfort Gel |
| Cassette: | Shimano Acera HG31, 11-32T, 8-speed |
| Brakes: | Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear |
| Tires: | Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe |
| Battery: | Fuji Power Pack 468Wh w/ 2A charger |
| Drive Unit: | Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist |
| Display: | Bafang 5 mode LED display w/ walk assist |
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
